If you’re a heavier rider, shopping for an ebike used to mean squinting at spec sheets and hoping a 275 lb limit was “close enough.” That era is over. The bikes we’ve tested over the past two years routinely clear 400 lbs, and the current class leader handles 560 lbs — rider, cargo, and everything you bolt on.
We’ve put miles on every bike on this list. Below you’ll find the heaviest-hitting model from each brand we work with, plus the standouts in cargo, folding, and accessible three-wheel designs. Every payload number here comes straight from our own reviews.
How Payload Capacity Actually Works
Payload capacity is the number most riders get wrong, so it’s worth 60 seconds. It’s not “how much rider the bike can hold.” It’s total system weight minus the bike itself: you, your clothes, your backpack, your groceries, your rack, your panniers, your dog trailer, your lock. All of it.
A 400 lb payload sounds enormous until you do the math. A 250 lb rider in winter gear with a 15 lb pack, a 10 lb lock, and 40 lbs of groceries is already at 320. That’s still fine — but it’s a lot closer to the line than the headline number suggested.
Two more things worth knowing:
- Frame capacity and rack capacity are different numbers. The Aventon Abound LR handles 440 lbs total, but its rear rack is rated for 143 lbs. Blowing past a rack rating is a much easier mistake to make than overloading a frame.
- Exceeding the limit isn’t a cliff — it’s a tax. You won’t snap a frame at 401 lbs. What you will do is stress spokes, wear brake pads faster, flex the fork, and void your warranty. Ride under the number and the bike lasts.
Our advice: add up your realistic loaded weight, then give yourself a 15–20% buffer. If that lands you above 350 lbs, this list is where you should be shopping.
The Super Haulers: Every Brand’s Heaviest Hitter
Rather than rank a single brand’s catalog top to bottom, here’s the highest-payload bike from each brand we’ve reviewed. If you’re brand-loyal, or you just want to know who builds the strongest frame in each lineup, start here.
| Brand | Model | Payload | Best For |
|---|---|---|---|
| Velotric | Nomad 2X | 560 lb | Absolute maximum capacity |
| Lectric | XPedition 2.0 | 450 lb | Cargo on a budget |
| Mooncool | TK Pro | 450 lb | Three-wheel stability |
| Aventon | Abound LR | 440 lb | Dealer network + cargo |
| Heybike | Ranger 3 Pro | 440 lb | Folding fat tire |
| Radio Flyer | Flyer Loop | 440 lb | Family hauling |
| Monarc | Marker | 420 lb | Off-road capability |
| Himiway | D5 2.0 | 400 lb | Long-range fat tire |
| Ride1Up | Trailrush | 350 lb | Value trail riding |
| Retrospec | Valen Rev+ | 350 lb | Comfort cruising |
One pattern worth naming up front: Velotric consistently posts the highest capacity numbers in the category. They’ve made high payload a design priority rather than a side effect, and it shows — four of their models clear 440 lbs. We give them their own section further down. But they’re not the only answer, and depending on what you’re doing with the bike, they may not be your answer.
Velotric Nomad 2X — 560 lb Payload
This is the highest payload figure we’ve recorded on any ebike, full stop. The Nomad 2X frame is rated for 560 lbs, and Velotric backs it with towing capacity too — which is a genuinely unusual spec to see on a consumer ebike. The MIK-compatible rear rack handles 120 lbs on its own and comes with pannier hangers already fitted.
If your loaded weight is north of 400 lbs and you don’t want to think about the number again, this is the bike. Read our full Velotric Nomad 2X review.

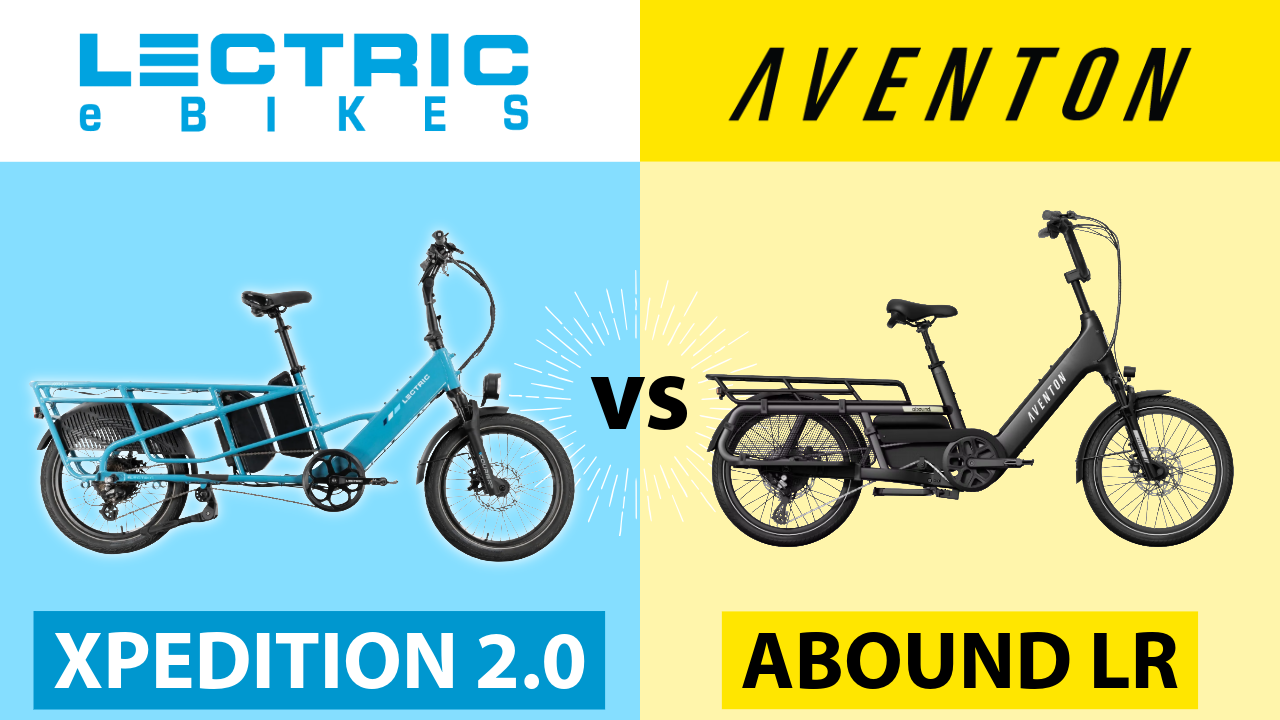

Lectric XPedition 2.0 — 450 lb Payload
Lectric’s cargo bike carries 450 lbs total with a rear rack rated for a frankly ridiculous 300 lbs. That rack number is the story here — it’s double what most cargo bikes allow, and it’s what makes two-kid hauling or a genuine grocery run realistic rather than theoretical.
It’s also priced like a Lectric, which is to say hundreds less than the cargo bikes it competes with. We put it head to head with Aventon’s cargo bike in our XPedition 2.0 vs Abound LR comparison.

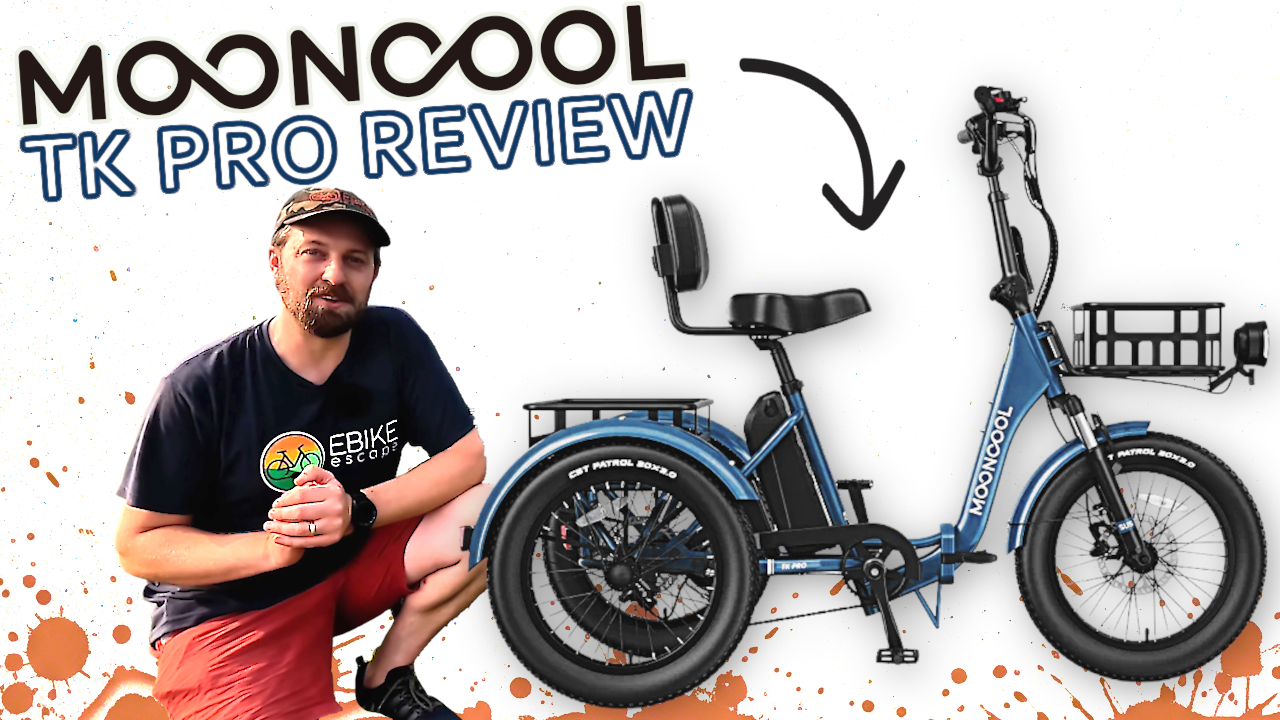

Mooncool TK Pro — 450 lb Payload
A trike solves a problem two wheels can’t: if balance is a concern — and for a lot of heavier riders it is, particularly at low speed or when stopping — three wheels remove the issue entirely. The TK Pro carries 450 lbs, the highest in Mooncool’s trike lineup, on a folding aluminum frame with hydroformed tubing.
This is the pick for riders who want capacity without the balance tax. See our full Mooncool TK Pro review.
Aventon Abound LR — 440 lb Payload
The Abound LR matches the standard Abound and Abound SR on capacity — 440 lbs for the frame, 143 lbs for that long rear rack — but stretches the rack out for more usable real estate. At 88 lbs the bike itself is no featherweight, which is worth factoring in if you’ll ever need to lift it.
Aventon’s advantage over the direct-to-consumer crowd is the dealer network: 1,800+ shops means someone local can service it. Read our full Aventon Abound LR review.
Heybike Ranger 3 Pro — 440 lb Payload
A 440 lb payload on a folding fat tire frame is a genuinely hard engineering trick — folding joints are exactly where capacity usually gets sacrificed. Heybike didn’t sacrifice it. If you need high capacity and you need the bike to fit in a trunk or an apartment closet, the Ranger 3 Pro is on a very short list.
More detail in our Heybike Ranger 3 Pro review.

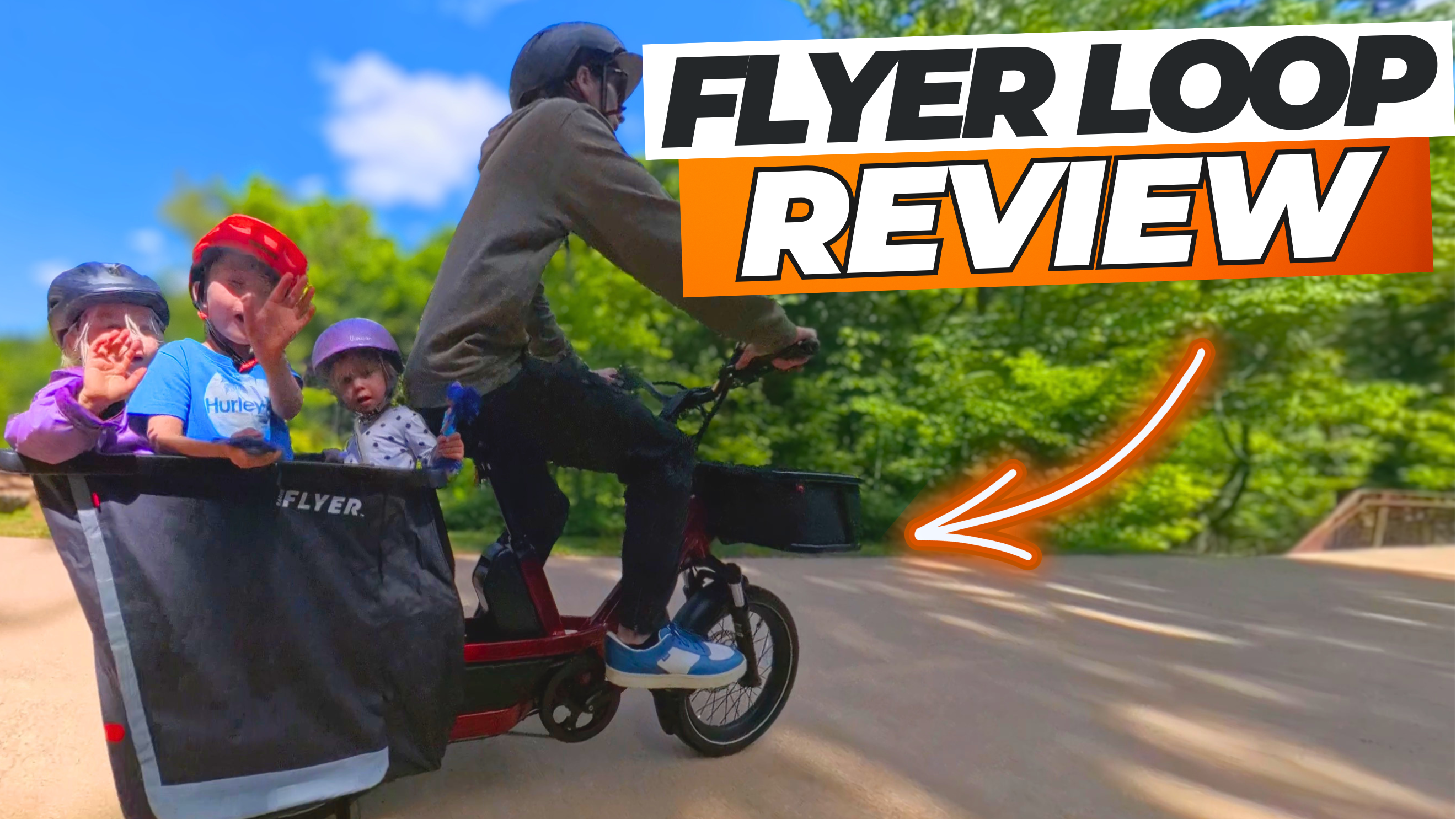

Radio Flyer Flyer Loop — 440 lb Payload
Yes, that Radio Flyer. The Flyer Loop carries 440 lbs and is built squarely around family duty — the rear rack is designed for kids from the start rather than accessorized into it after the fact.
If the reason you need payload capacity is that you’re carrying passengers rather than just yourself, this deserves a look. See our Radio Flyer Flyer Loop review.

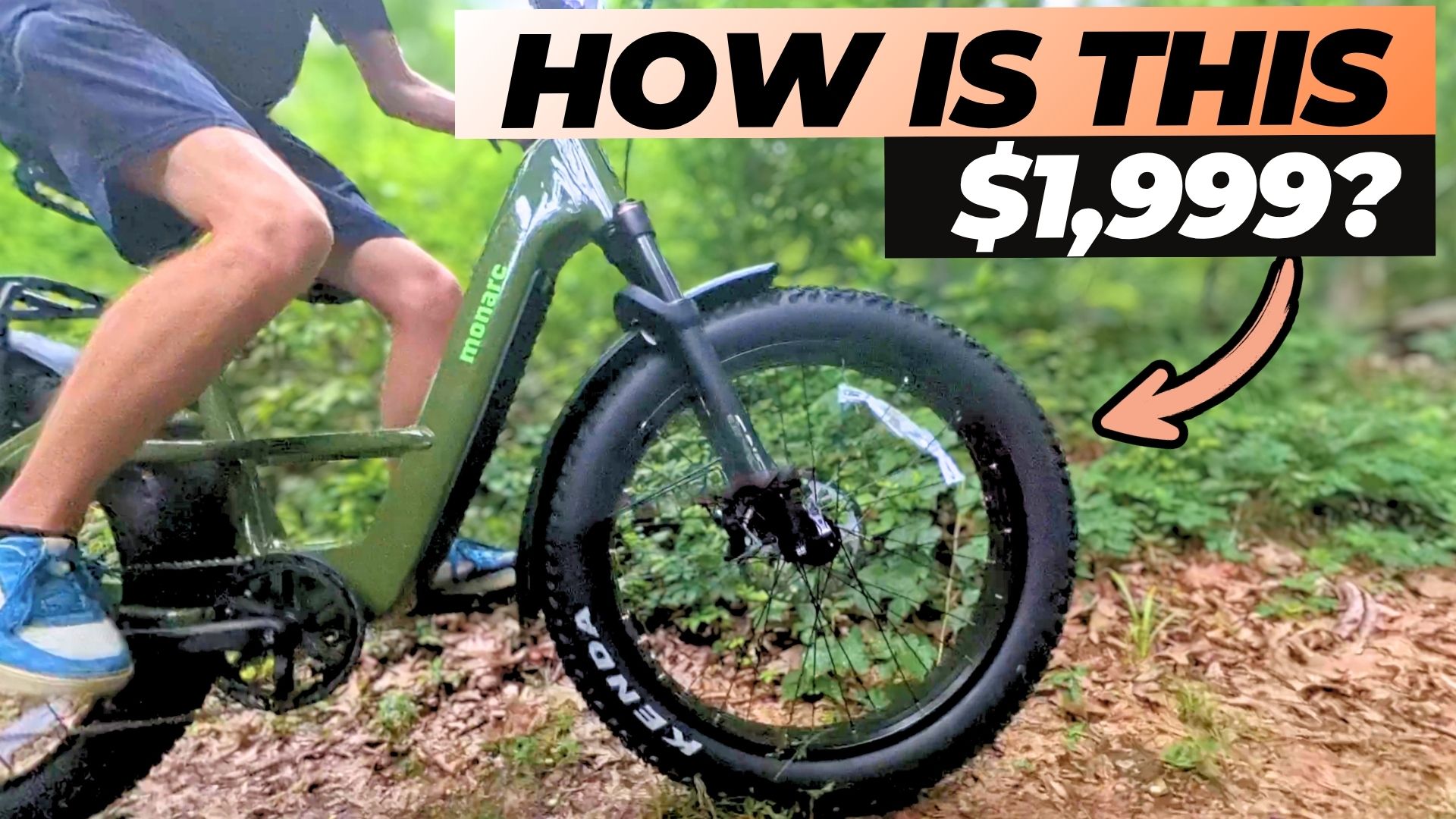

Monarc Marker — 420 lb Payload
The Marker pairs a 420 lb total payload with real off-road hardware, and it ships as a Class 2 bike with Class 1/2/3 configurability. Practicality runs through the rest of the build, which is what earns it a slot here rather than just the capacity figure.
Worth noting for heavier riders specifically: we did see a motor temperature warning on the Marker, but that was during a deliberate stress-test climb, not normal riding. Full details in our Monarc Marker review.

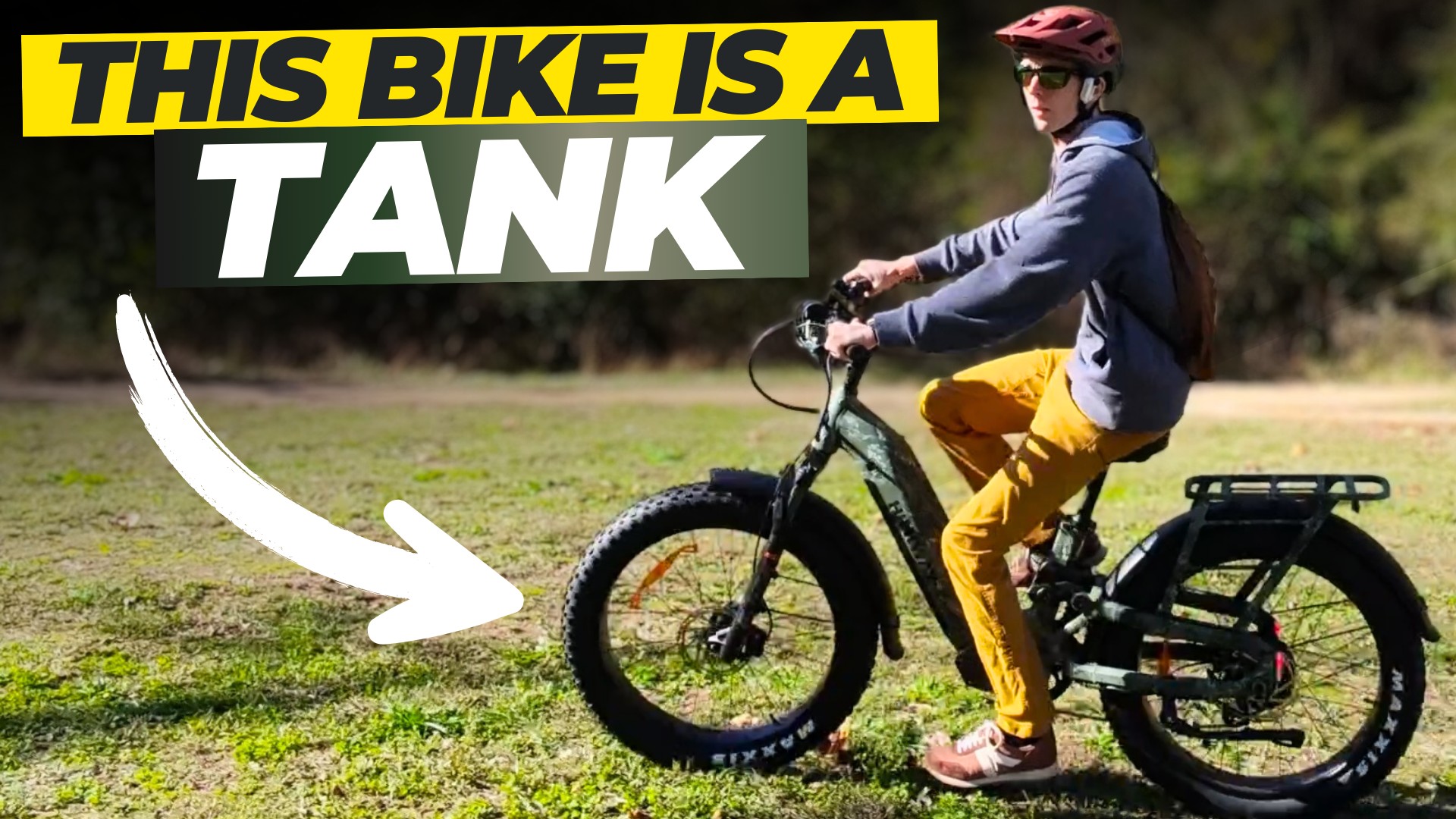

Himiway D5 2.0 — 400 lb Payload
Himiway has built its reputation on burly frames and big batteries, and the D5 2.0 is the current expression of that: 400 lb payload with a build that feels genuinely planted underneath you. The tradeoff is heft — at 92 lbs it is not a bike you’ll be carrying up stairs.
If your rides are long and your storage is ground-level, that’s an easy trade. Read the Himiway D5 2.0 review.
Ride1Up Trailrush — 350 lb Payload
Ride1Up’s whole pitch is value, and the Trailrush is the strongest frame in their lineup at 350 lbs. This is the one to look at if you want to get off pavement without spending flagship money.
See our full Ride1Up Trailrush review.

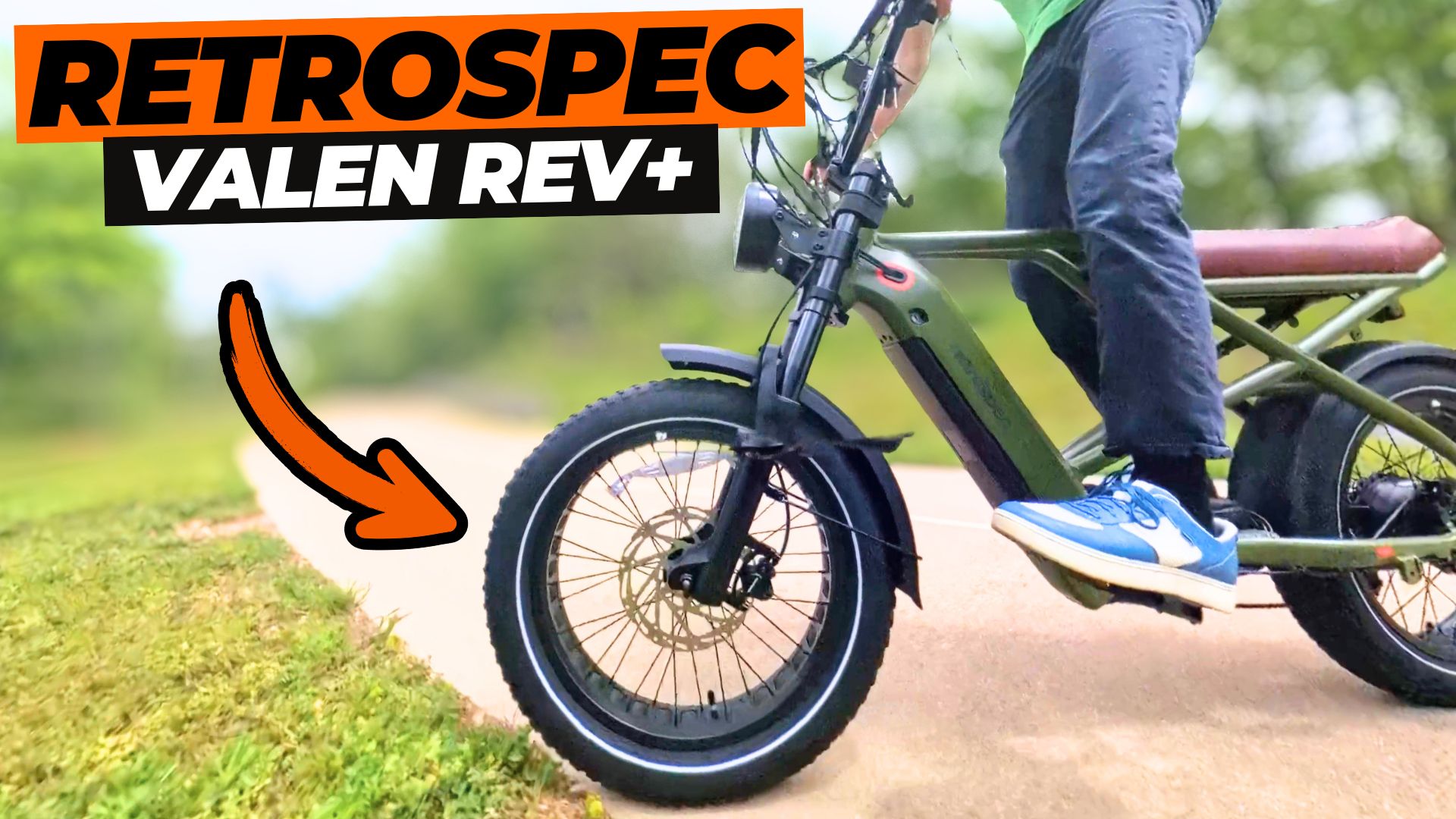

Retrospec Valen Rev+ — 350 lb Payload
The Valen Rev+ backs its 350 lb payload with a saddle and deck long enough that two people could realistically share it. It’s a comfort-first cruiser rather than a capability play, and for a lot of riders that’s exactly the point — upright position, relaxed geometry, no drama.
Details in our Retrospec Valen Rev+ review.
Velotric: The Rest of the High-Capacity Lineup
We flagged this above and it’s worth expanding on. Velotric doesn’t have one strong frame — they have a catalog of them. If raw capacity is your first filter, these are the other three worth knowing about.
Velotric Nomad 2 — 505 lb Payload
Before the 2X arrived, this was the class leader, and 505 lbs is still an enormous number. At 75 lbs it’s heavy like most fat tire ebikes, but the capacity supports a genuinely wide range of riders and cargo setups. Two frame styles and two sizes mean the fit works for more bodies than a single-geometry bike can manage.
Full details in our Velotric Nomad 2 review.
Velotric GoMad — 500 lb Payload
The GoMad’s angle is utility: fat tire ruggedness married to serious hauling, backed by a 500 lb total payload. It also runs a lower center of gravity than most fat tire bikes, which does more for stability under load than the spec sheet suggests.
See the Velotric GoMad review.
Velotric Fold 1 Plus — 450 lb Payload
Velotric bumped this one up by 10 lbs to 450 lbs without adding any weight to the bike itself — and it folds. Along with the Heybike Ranger 3 Pro, this is the strongest folding option we’ve tested, and it’s the highest-capacity folder on this list.
Read our Velotric Fold 1 Plus review.
Velotric Discover M — 440 lb Payload
A commuter, not a hauler — but a commuter with a 440 lb payload, which meaningfully outpaces the 300 lb limit on comparable bikes like the Aventon Level 4 ADV. If you want a normal-looking city bike that doesn’t quietly cap out below your weight, this is the one.
Details in our Velotric Discover M review.
Popular Models That Still Make the Cut (330–400 lb)
Not everyone needs 500 lbs. If your loaded weight lands in the 300s, these are the models people actually ask us about — and they all clear the bar with room to spare.
Aventon Aventure 3 — 400 lb Payload
The Aventure has been on this list since the first version in 2022, and the third generation keeps the formula: substantial bike (76 lbs), 400 lb payload, fat tires, and Aventon’s dealer network behind it. It remains the default recommendation for a full-sized fat tire ebike, and for good reason.
Read our Aventon Aventure 3 review.

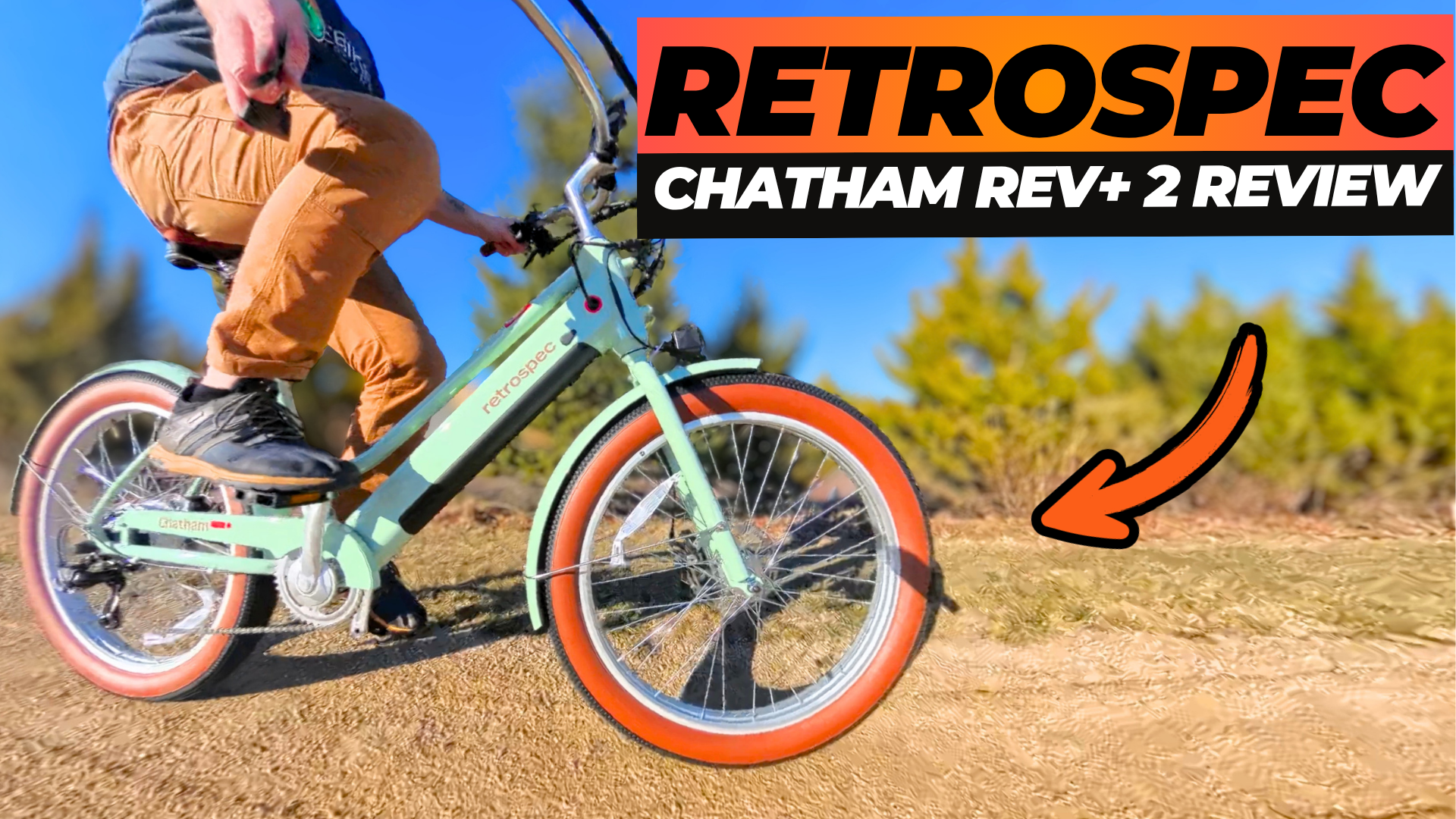

Retrospec Chatham Rev Plus 2 — 350 lb Payload
A 350 lb cruiser that leans into the relaxed end of the spectrum. If the Valen is a touch too much bike, the Chatham is the lighter-touch version of the same idea.
See the Retrospec Chatham Rev Plus 2 review.
Ride1Up Vorsa Lite — 350 lb Payload
A 350 lb weight capacity at Ride1Up’s characteristic price point. The Vorsa Lite is the entry into this list — the cheapest way onto a frame that’s actually rated for the job.
Details in our Ride1Up Vorsa Lite review.
Lectric XP 4 — 330 lb Payload
The XP has been the best-selling ebike in America for years, and four generations in the payload holds steady at 330 lbs. That’s the lowest number on this list, and it’s still enough for the majority of riders reading it. Folds, cheap, everywhere — there’s a reason this bike is a phenomenon.
Read our Lectric XP 4 review.

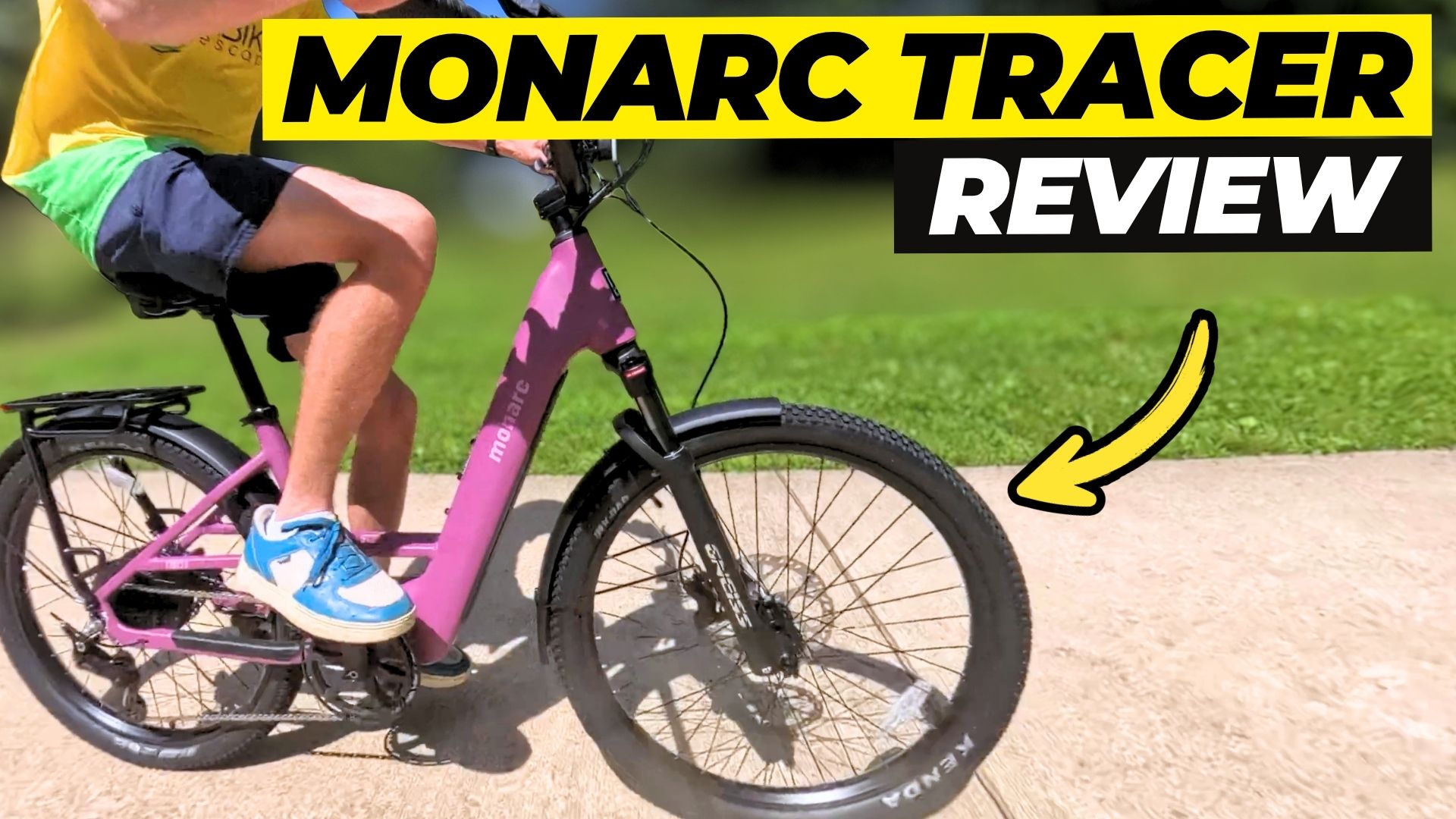

Monarc Tracer — 330 lb Payload
The Tracer is the lighter, more road-oriented sibling to the Marker, with a 330 lb capacity. If the Marker is more bike than you need, this is the trimmed-down take.
See our Monarc Tracer review, or our Monarc vs Aventon brand comparison if you’re weighing the two.
Every Bike, Ranked by Payload
| Model | Payload | Type |
|---|---|---|
| Velotric Nomad 2X | 560 lb | Fat tire |
| Velotric Nomad 2 | 505 lb | Fat tire |
| Velotric GoMad | 500 lb | Fat tire / utility |
| Lectric XPedition 2.0 | 450 lb | Cargo |
| Velotric Fold 1 Plus | 450 lb | Folding |
| Mooncool TK Pro | 450 lb | Trike |
| Aventon Abound LR | 440 lb | Cargo |
| Velotric Discover M | 440 lb | Commuter |
| Heybike Ranger 3 Pro | 440 lb | Folding fat tire |
| Radio Flyer Flyer Loop | 440 lb | Family / cargo |
| Monarc Marker | 420 lb | Off-road |
| Aventon Aventure 3 | 400 lb | Fat tire |
| Himiway D5 2.0 | 400 lb | Fat tire |
| Retrospec Valen Rev+ | 350 lb | Cruiser |
| Retrospec Chatham Rev Plus 2 | 350 lb | Cruiser |
| Ride1Up Trailrush | 350 lb | Trail |
| Ride1Up Vorsa Lite | 350 lb | Commuter |
| Lectric XP 4 | 330 lb | Folding |
| Monarc Tracer | 330 lb | Commuter |
The Bottom Line
The honest summary: this is no longer a hard problem. When we first published this list in 2022, finding an ebike over 300 lbs took effort. Today the question isn’t whether a bike exists for you — it’s which of twenty good ones fits how you actually ride.
If you want the highest number, it’s the Nomad 2X at 560 lbs. If you’re hauling kids or cargo, the XPedition 2.0’s 300 lb rack is the standout spec on this page. If balance is a concern, the Mooncool TK Pro’s third wheel solves a problem no two-wheeler can. And if you just want a good bike at a fair price that happens to be rated properly, the Lectric XP 4 or Ride1Up Vorsa Lite will do the job.
Add up your real loaded weight, add 20%, and buy the bike you actually want to ride. The capacity will be there.
